Designer

Moldex3D Designer provides a complete series of powerful pre-processing tools, including automatic mesh generator and intelligent modeling wizards, to help users create True 3D mesh models efficiently and easily setup a variety of simulation conditions, such as gates, runners, cooling channels, etc., with proper user friendliness and efficiency. With Moldex3D Designer, designers are able to verify and optimize design changes more effectively and more flexibly.

Designer

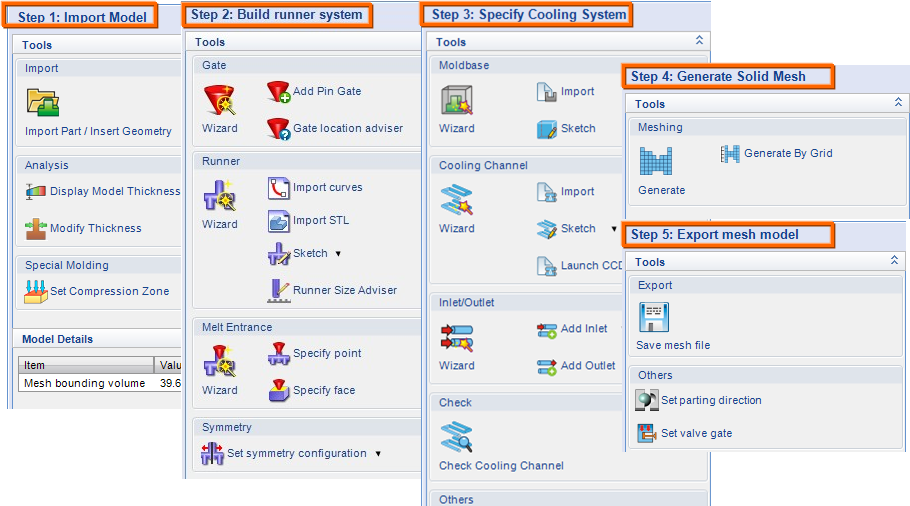

Intuitive User Interface

The easy-to-navigate user interface provides a consistent logic to guide users to access to the simulation workflow step by step. It highly improves the functionality and shortens users’ learning curve. With only a few clicks needed, users can complete the full pre-processing preparation easily and efficiently.

designer-02-large

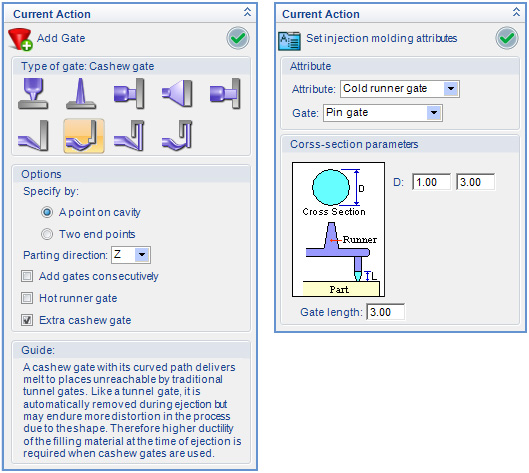

Various Gate Types

Moldex3D Designer provides various gate types in Gate Wizard, including pin gate, sprue gate, edge gate, fan gate, etc. Using the gate-aware Runner Wizard, users can build single or multiple gates quickly and consecutively. Additionally, users can apply Gate Location Advisor to setup one or more appropriate gate locations according to the part geometry.

Various Gate Types

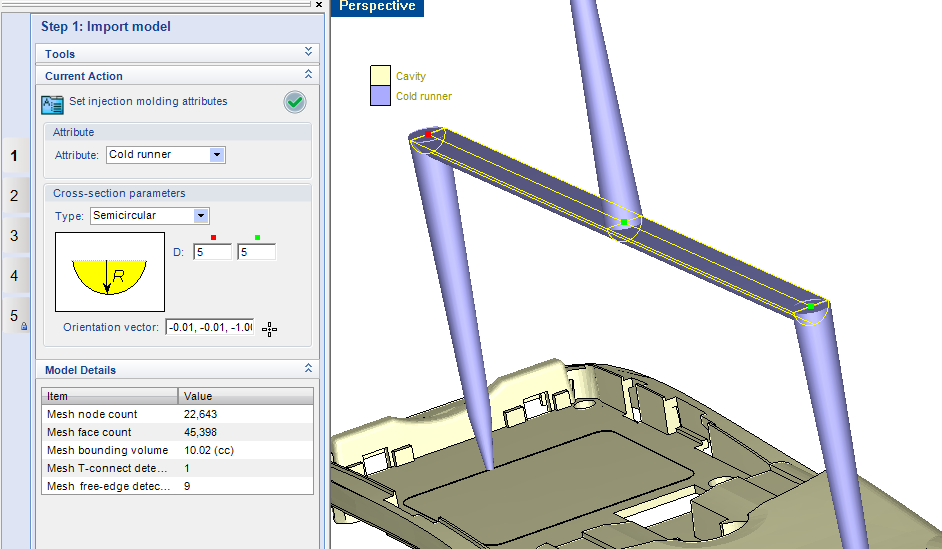

Enhanced Runner Wizard

The Runner Wizard supports a variety of runner types, including runner cross section types, to better describe the real runner geometry with True 3D solid mesh. It also allows to use curve objects as runners and to construct a complete runner system with mixed STL topology and runner lines.


Enhanced Runner Wizard

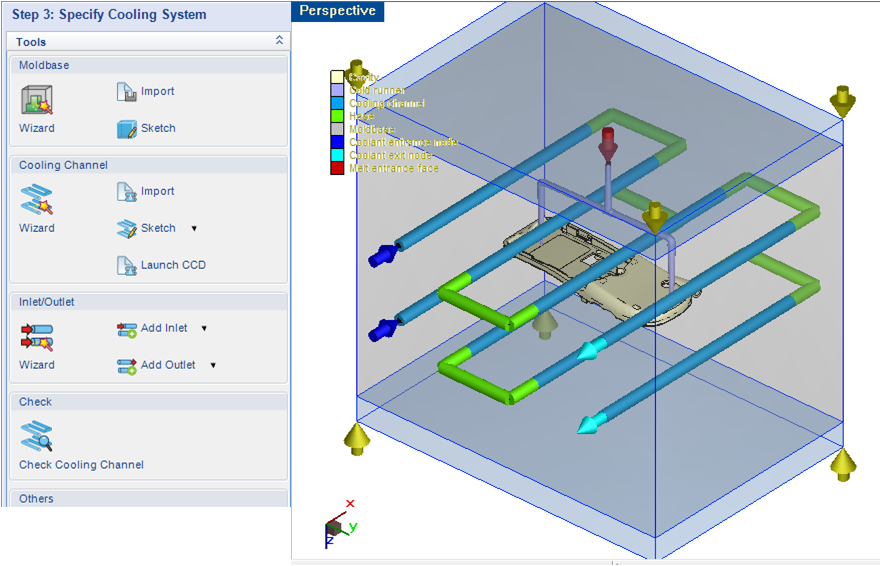

Customized Cooling Channels

The Cooling Wizard helps users create an entire cooling system for simulations. The added support of cooling channel templates enables users to setup essential cooling channels quickly and save time of reconstructing the previously designed cooling system. Edited cooling channels also can be saved as users’ proprietary templates or as default directly for the next design.

Automatic Mesh Generator

The superior 3D meshing engine helps users generate 3D mesh for part and mold design more effectively and more efficiently. Users are able to work directly through CAD models to True 3D simulations, saving working hours in complicated mesh preparation. Its advanced functionalities also allow users to import/patch/edit CAD models for accurate injection molding analyses.

Parallel Meshing Capabilities

The meshing kernels in Designer will automatically detect and fully utilize the modern multi-core CPU to speed up meshing without any additional settings. Users will save significant amount of time on mesh preparation.

Element Count

Time in seconds

Elements per minute

Speed up(4 Core / 1 Core)

Core 1

Core 4

Core 1

Core 4

407,237

149

59

163,988

414,139

2.53

540,651

35

14

926,830

2,317,076

2.50

719,610

352

140

122,661

308,404

2.51

1,004,709

423

190

142,512

317,277

2.23
