DesignSim for NX
Real-time Validation, Seamless Iteration.
Run injection molding DFM validations inside Siemens NX in just 4 steps, reaching up to 4.75× validation speed.
Three Bottlenecks Hurting Your Design Workflow and Product Development Efficiency
Delayed Feedback
Ever want to validate your design in real time instead of waiting for feedback from CAE engineers?
Late Defect Detection
Constantly discovering design issues right before the molding trial, forcing a redesign and delaying production?
Complex CAE Simulation
Want to run CAE analysis upfront, only to find the software too complex and the results hard to interpret?
DesignSim Streamlines the Design Process
Fast Validation Time

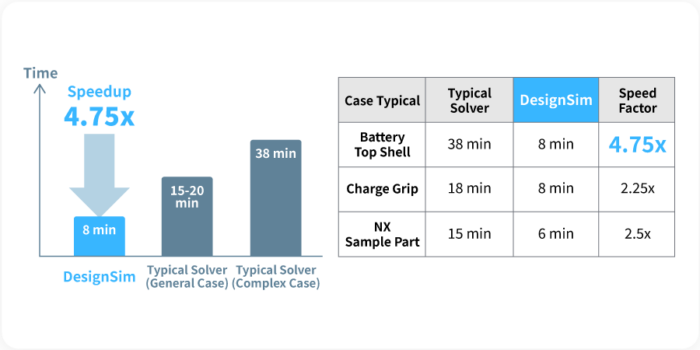

Improve simulation efficiency by 3.2x, achieving up to 4.75x speedups on complex geometry. Designers can efficiently revise and validate designs without disrupting the workflow.
Less Pre-Processing Tuning

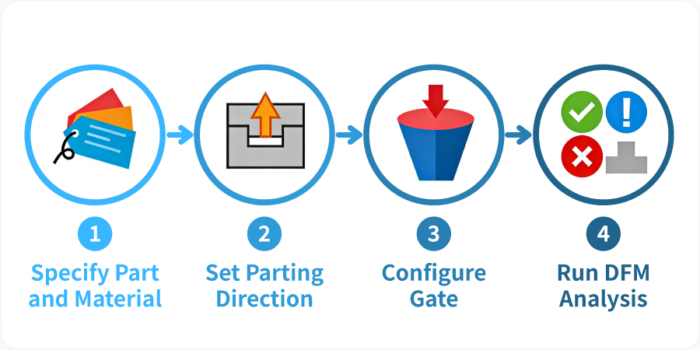

Complete the analysis in just 4 steps inside NX. Solver settings, mesh size, and CPU allocation are auto-defaulted. Defaults are validated across thousands of runs.
Designer-Centric DFM Checks

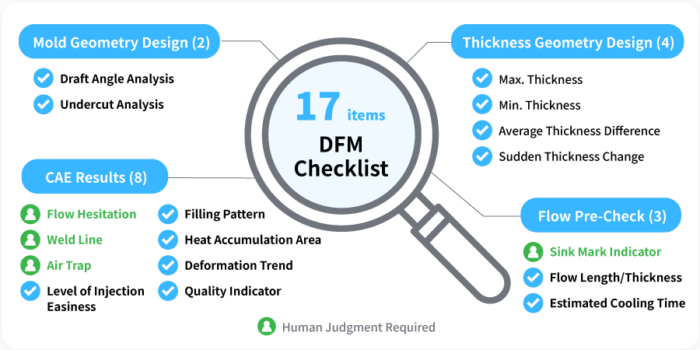

Provide 17 DFM checks organized around the questions real-world part designers ask. For 4 critical checks, human judgment remains part of the decision-making process.
Easy-to-Read Results

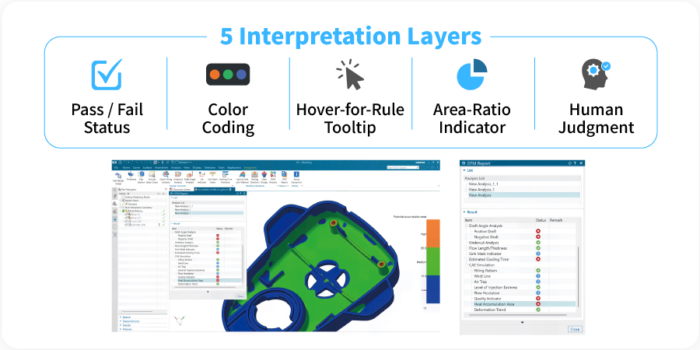

Present the results through 5 clear interpretation layers. Readable results make data interpretation simple and intuitive even without CAE expertise.
Key Features
Comprehensive design-aid tools and DFM checks offer faster validation and better designs.
Geometry Assessment
Quickly inspect the internal structure and thickness distribution.
Undercut & Draft Angle
Identify areas that cannot be demolded and optimize the design.
Flow L/t & Sink Mark
Detect potential flow issues and mitigate the risk of surface defects.
Weld Line & Air Trap
Simulate the flow behavior and pinpoint potential defect locations.
Estimated Cooling Time
Evaluate cycle time to reduce deformation and production risks.
DFM Analysis
Validate Design for Manufacturability early to avoid costly rework.
Flexible Licensing × Cloud Connectivity
Material Hub, Elevating Software Value
DesignSim seamlessly integrates with Material Hub in Moldiverse*, providing real-time access to over 9,000 material datasets. This enables engineers to select materials accurately, run simulations faster, and reduce trial-and-error risks. Decision-makers have instant access to the latest material information, enhancing development efficiency and decision-making quality.
Subscription-Based, Freely Scalable
DesignSim adopts a flexible subscription licensing model, allowing users to pay only for what they need without heavy upfront investment. In addition, subscribers can stay up to date with the latest design validation and DFM technologies. This approach maximizes the software's value, driving higher work efficiency and enhancing work quality.
Interested in DesignSim?
Fill out the form below and our team will contact you soon with product details and licensing options.
