Use Gate Location Advisor to Quickly Optimize Gating Design

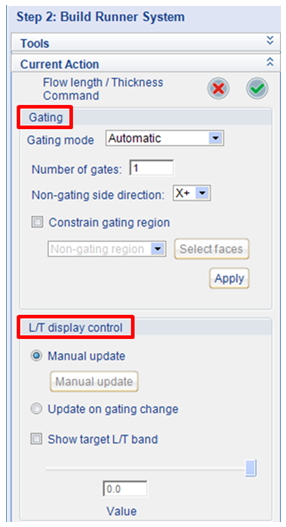

Gate Location Advisor is a useful tool for users to choose the location(s) of the gate(s). In Step 2, in the pre-processing procedure, click Gate Location Advisor and call the workspace with two sections of settings, Gating and L/T display control. The workflow of this function is to first add gate(s) on the cavity and then, based on the existing gate(s), examine the L/T distribution. Normally the L/T distribution should be minimized and as even as possible for different gates. In addition, there is an additional L/T display with more advanced functions for experienced users.

use-gate-location-advisor-to-quickly-optimize-gating-design-1

Step 1. Click Gate Location Advisor to launch workspace and specify. There are two gating modes available: Automatic and Manual.

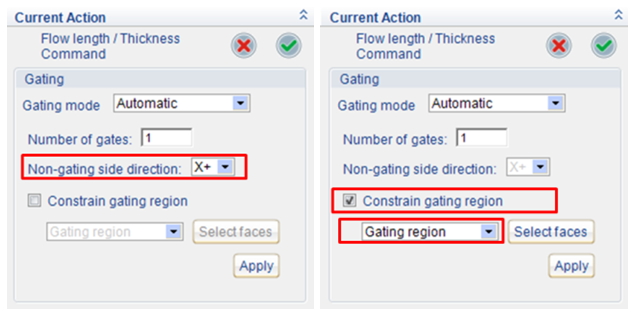

Step 2. For automatic mode, simply specify the number of gates and select either Non-gating side direction or Constrain gating region.

Note: The two icons cannot be selected together.

Note: The Non-gating side refers to the core side direction where gate placement should be avoided.

use-gate-location-advisor-to-quickly-optimize-gating-design-2

use-gate-location-advisor-to-quickly-optimize-gating-design-3

Step 3. For the following geometry, Gate Location Advisor function by both Non-gating side direction and Constrain gating region approach will be illustrated.

When Non-gating side direction is selected (-Z in this case), the gate is rationally being placed on the +Z direction by the gate location advisor.

use-gate-location-advisor-to-quickly-optimize-gating-design-4

Alternatively, one can also use the gate location advisor to help identify where the most appropriate gate location with a specific gating direction or non-gating region setting, and  select faces where one wants to place or constrain the gate(s).

use-gate-location-advisor-to-quickly-optimize-gating-design-5

Step 4. After the settings are done, click Apply to calculate the best gate location and automatically add the gates(s) accordingly.

Note: The calculation is based on flow length-to-thickness ratio. For Manual mode, click Add to add gate(s) on the cavity.

use-gate-location-advisor-to-quickly-optimize-gating-design-6

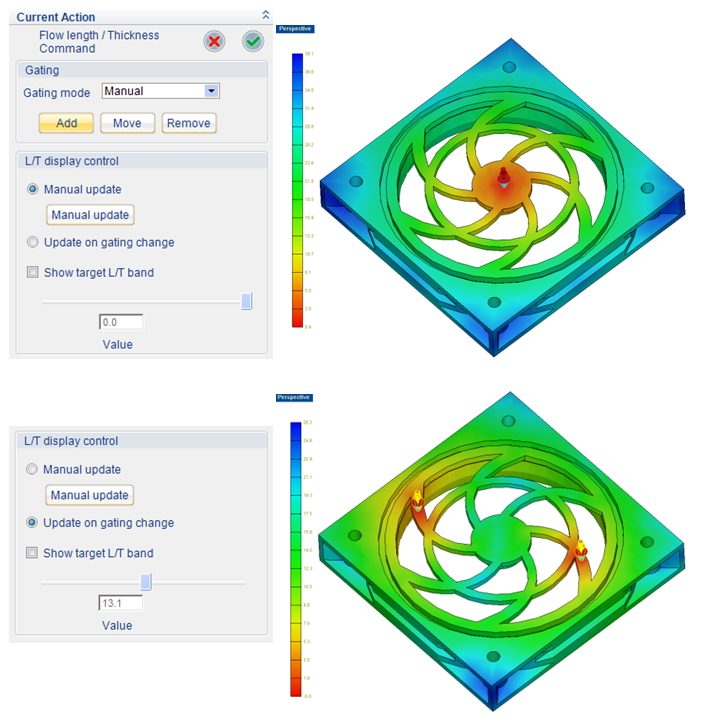

Step 5. Use L/T display control tool to check the result. L/T display control will show the L/T distribution based on the existing gates added on the cavity. You can select either Manual update or Update on gating change as the updating method.

use-gate-location-advisor-to-quickly-optimize-gating-design-7
