Moldex3D Professional Solution Package
On top of eDesign Package, Moldex3D Professional Package offers all types of design tools for simulation. Users are able to obtain product insights and properties, and further to optimize processes before physical parts are built.
Professional Solution Package is added with 3D Coolant CFD to fulfill requirements for RHCM and Conformal Cooling analysis to bring more benefits and value to users. Designer BLM module with Non-Matching mesh technology is also added into preprocessing interface to facilitate the part and mold modeling, and auto meshing technology enables users to work in CAD with no need for advanced CAD knowledge. Moldex3D Professional Package helps companies to enhance design reliability, reduce development costs, and shorten time to market.
- Simple ways to build all kinds of models.
- Automatic eDesign meshing technology for 3D modeling
- Designer BLM with Non-Matching mesh topology technology
- Simulation results with figures and animations for more communication
Create a part with complete runner and cooling system within few clicks
The 3D model pre-processor, Designer, provides an automatic interface for users to build their parts with ease. Wizard tools guide you through steps of creating melt deliver systems, cooling channels and moldbase, with automated issue advisor. The pre-processors simplify the model creation and allow designers to validate designs efficiently.

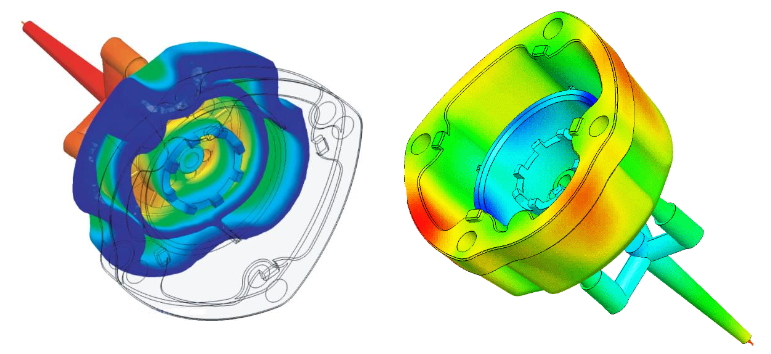

Perform 3D numerical analyses with accuracy
3D solvers tackle complex injection-molded parts with confidence and efficiency. Designers are able to obtain in-depth knowledge and detect potential defects from comprehensive analyses. The Material Database and Process Wizard assist users to easily iterate on design revisions and optimize their processes in early stages.
Generate reports automatically and present results in customized ways
Post-processing tools enable users to demonstrate molding process and product properties with real-time contours, graphs and animation. From the automatic report generator, it benefits on quick reports and efficient communication. Moldex3D brings users design reliability and helps in successful decision making.
